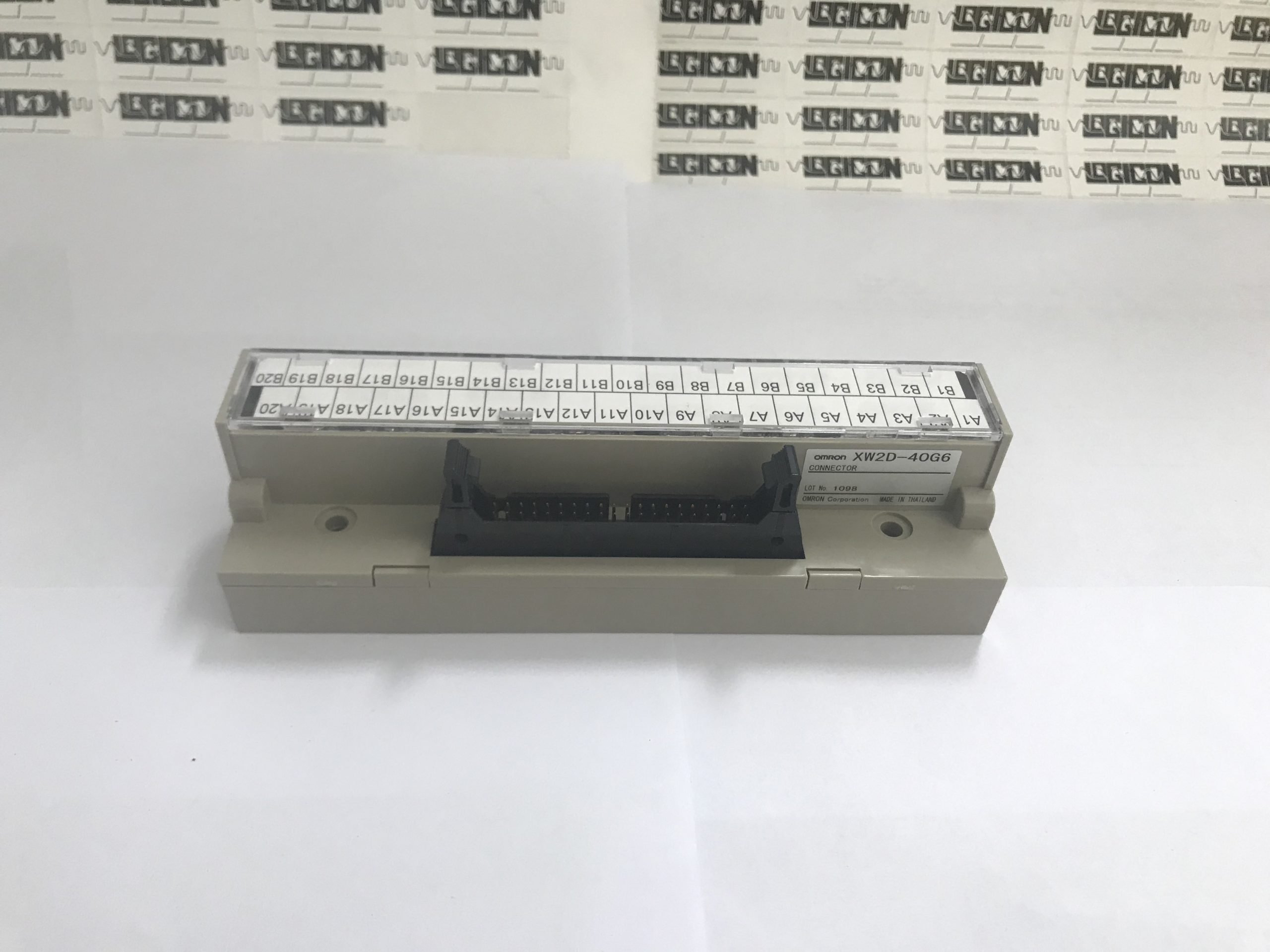

Mounting Connector MIL Connector Terminal Block Connection Method M3 screw
Number of Poles(Pole) 40 Mounting Method Allows Both DIN Rail and Screw Mount
Pitch Between Terminals(mm) 7 Dimension vertical(mm) 40
Dimension width(mm) 149 Dimension depth(mm) 39
Rated Voltage (V)(V) AC125/DC24 Implementation connector format (PLC side) XG4A-4031
Type of Connector on Cable Side (PLC Side) XG4M-4030-T Mounted Connector: Plug / Socket Plug (male)
