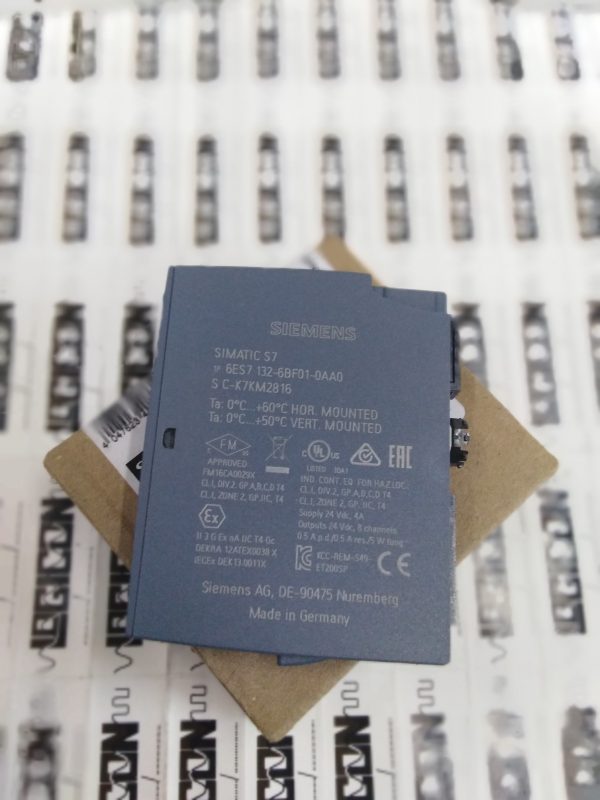

6ES7132-6BF01-0AA0 SIEMENS SIMATIC ET 200SP, DIGITAL OUTPUT MODULE (EC-0160)
SIEMENS
6ES7 132-6BF01-0AA0
SIMATIC ET 200SP, Digital output module, DQ 8x 24V DC/0,5A
Basic, Source output (PNP,P-switching), substitute value output, module
diagnostics for: supply voltage
Description
General information
Product type designation : DQ 8×24 VDC/0.5 A BA
Firmware version : V0.0 , FW update possible : No
Usable BaseUnits : BU type A0
Engineering with
● STEP 7 TIA Portal configurable/integrated as of version : V14
● STEP 7 configurable/integrated as of version : V5.5 SP3
● PROFIBUS as of GSD version/GSD revision : One GSD file each, Revision 3 and 5 and higher
● PROFINET as of GSD version/GSD revision : GSDML V2.3
Operating mode
- ● DQ :Yes
● DQ : with energy-saving function No
● PWM : No - Supply voltage : Rated value (DC) : 24 V
: permissible range, lower limit (DC) : 19.2 V
: permissible range, upper limit (DC) : 28.8 V
: Reverse polarity protection : Yes
Input current : Current consumption, max. : 45 mA; without load
Output voltage : Rated value (DC) : 24 V
