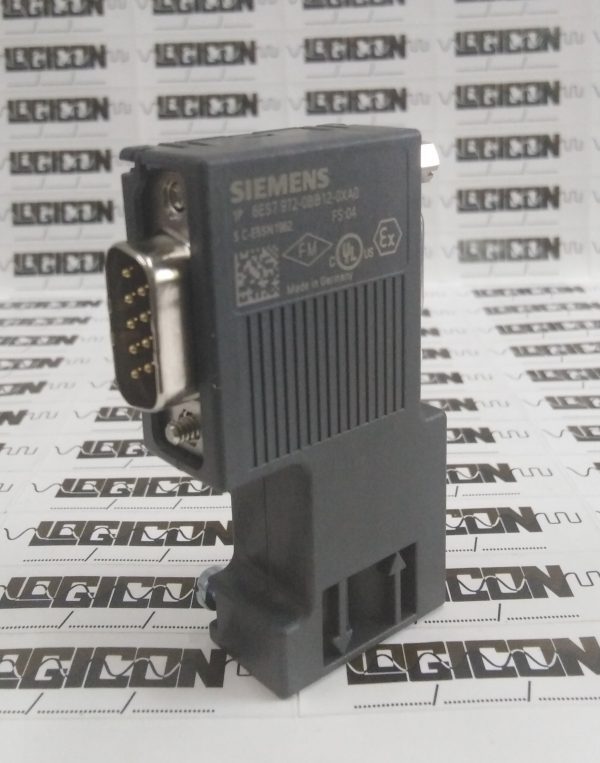

6ES7972-0BB12-0XA0 SIEMENS Busconnector Profibus DP

February 13, 2019 0

SIEMENS

6ES7972-0BB12-0XA0

Simatic DP  / Profibus DP



SIMATIC DP, Connection plug for PROFIBUS up to 12 Mbit/s 90°

cable outlet, 15.8x 64x 35.6 mm (WxHxD), terminating resistor with

isolating function, With PG receptacle

Description

Suitability for use   :    For connecting PROFIBUS nodes to the PROFIBUS bus cable

Transmission rate

-Transfer rate / with PROFIBUS DP    9.6 kbit/s … 12 Mbit/s

Interfaces

Number of electrical connections

● for PROFIBUS cables    :    2

● for network components or terminal equipment    : 1

Type of electrical connection

● for PROFIBUS cables    :   Screw

● for network components or terminal equipment      :    9-pin Sub-D connector

Type of electrical connection / FastConnect    :    No

Mechanical data

Design of terminating resistor   :  Integrated resistor combination that can be selected with                                                                               slide switch

Material / of the enclosure      :    plastic

Locking mechanism design     :    Screw

Design, dimensions and weight

Type of cable outlet     :     90° cable outlet

Width     :    15.8 mm

Height    :    64 mm

Depth     :    35.6 mm

Net weight     :    10 g

Permitted ambient conditions

Ambient temperature

● during operation     :   0 °C

● during storage         :    -40 … +70 °C

● during transport     :    -40 … +70 °C

Protection class IP           :     IP20

Product properties, functions, components / general

Product feature

● silicon-free    :    Yes

Product component

●PG connection socket      :   Yes

● strain relief       :    Yes

Standards, specifications, approvals

Certificate of suitability

● RoHS conformity     :   Yes

● UL approval      :   Yes

Reference code

● acc. to DIN EN 81346-2     :    XF
