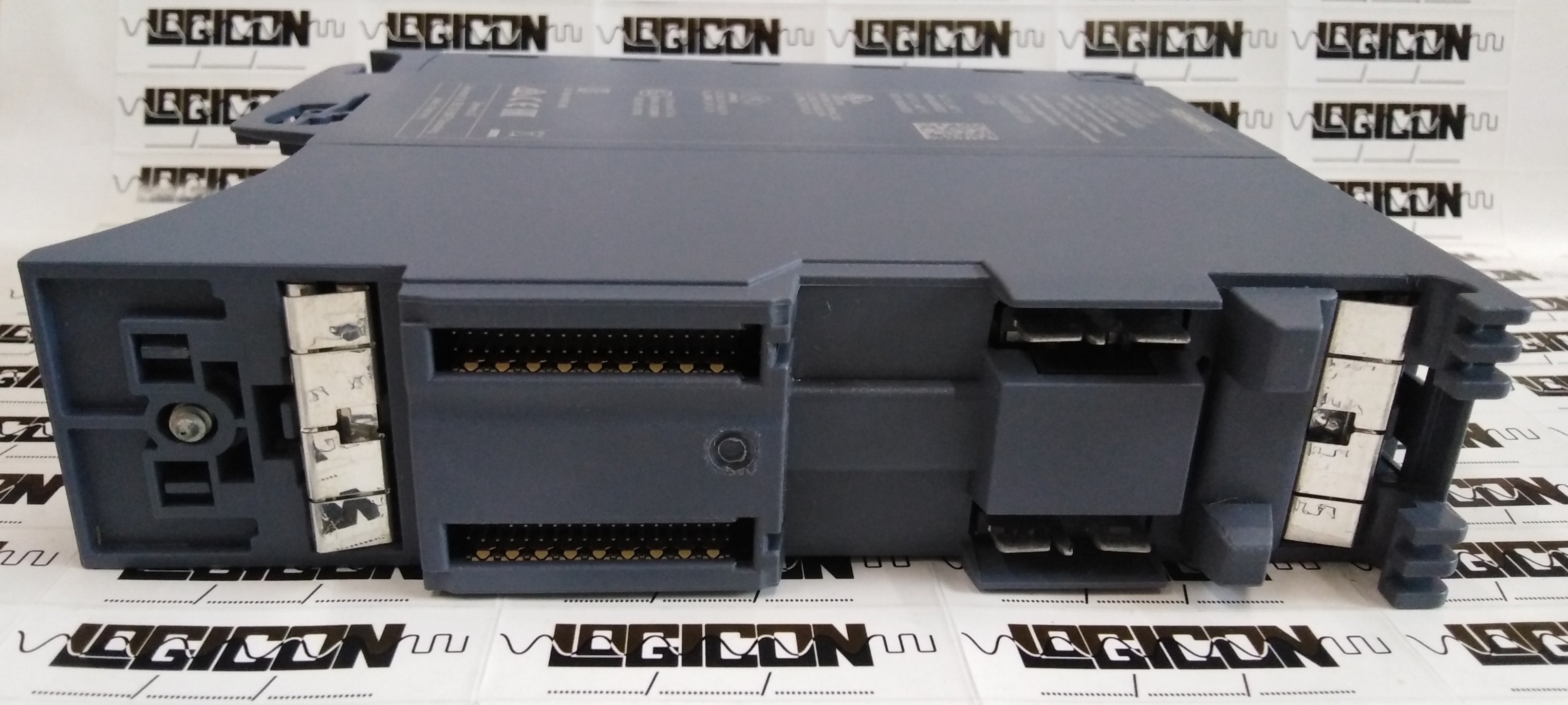

6ES7522-1BH01-0AB0 SIEMENS SIMATIC S7-1500, DIGITAL OUTPUT MODULE (EC-0156)

January 29, 2019 0

SIEMENS

DIGITAL OUTPUT MODULE

6ES7 522-1BH01-0AB0

SIMATIC S7-1500, digital output module DQ16x24 V DC/0.5 A HF;
16 channels in groups of 8; 4 A per group; Single-channel
diagnostics; Substitute value: Front connector (screw terminals or
push-in) to be ordered separately

Description

General information
HW functional status :  FS02
Firmware version :  V1.1.0
● FW update possible  :  Yes

Engineering with
● STEP 7 TIA Portal configurable/integrated as of version  :  V13 SP1 / –
● PROFIBUS as of GSD version/GSD revision  :  V1.0 / V5.1
● PROFINET as of GSD version/GSD revision  :  V2.3 / –

Supply voltage
Type of supply voltage :  DC
Rated value (DC) :  24 V
Permissible range, lower limit (DC)  :  20.4 V
Permissible range, upper limit (DC) :  28.8 V
Reverse polarity protection  :  Yes; through internal protection with 7 A per group

Input current
Current consumption, max. :  30 mA

Output voltage
Rated value (DC)  :  24 V
