6ES7193-6BP00-0DA0 BASEUNIT SIMATIC ET200 (EC-0087)

January 28, 2019 0

SIEMENS

6ES7193-6BP00-0DA0 BASEUNIT SIMATIC ET200

(EC-0087)

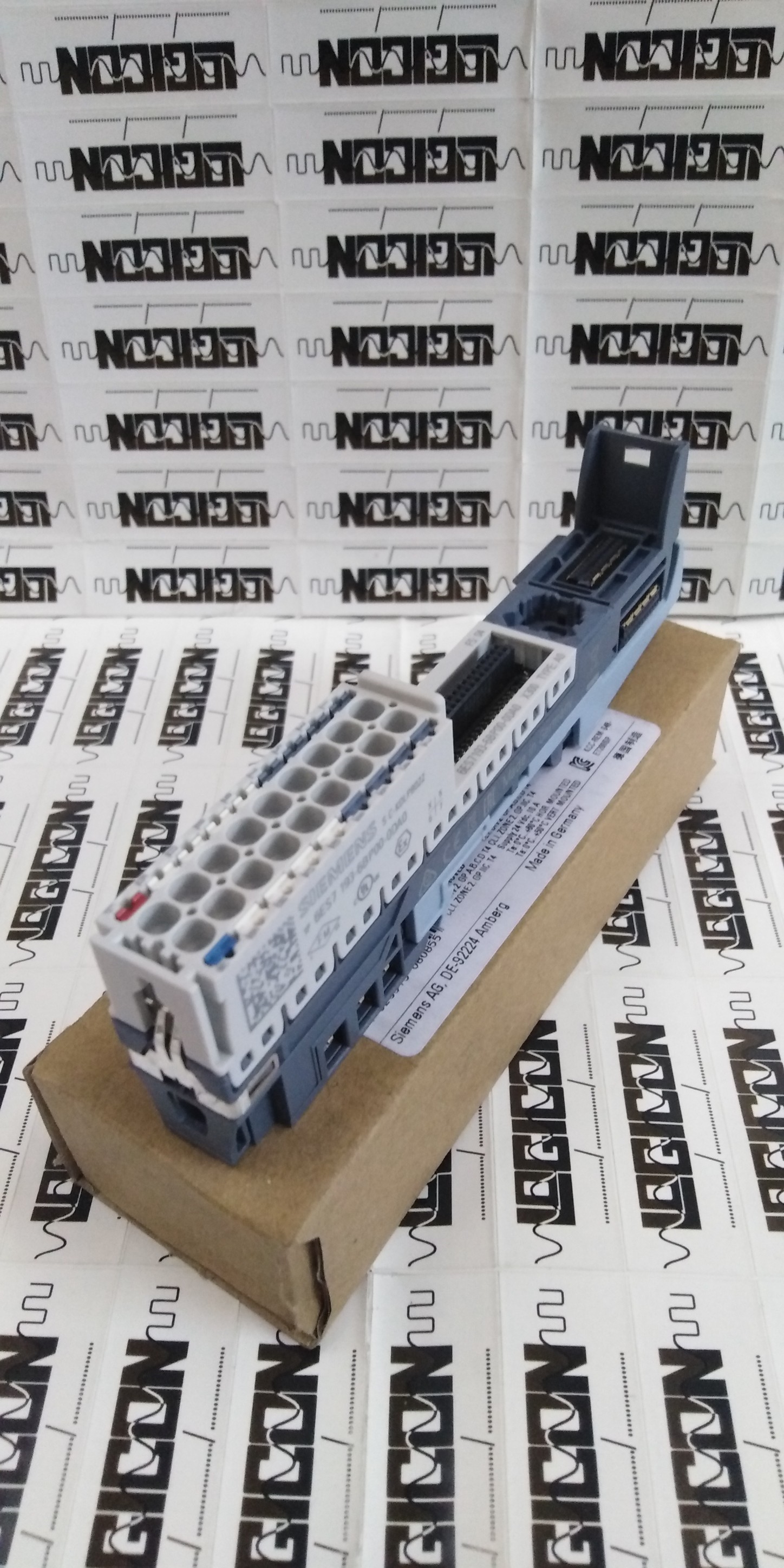

SIMATIC ET 200SP, BaseUnit BU15-P16+A0+2D, BU type A0,
Push-in terminals, without AUX terminals, New load group, WxH: 15x
117 mm

General information
Product type designation : Type A0
HW functional status : From FS06
Supply voltage
Rated value (DC) :  24 V
External protection for power supply lines : Yes 24 V DC/10 A miniature circuit breaker                                                                                         with type B or C tripping characteristic

Connection method
     Terminals
● Terminal type : Push-in terminal
● Conductor cross-section, min. :  0.14 mm²; AWG 26
● Conductor cross-section, max. ;  2.5 mm²; AWG 14
● Number of process terminals to I/O module  :  16
● Number of terminals to AUX bus  :  0
● Number of add-on terminals  :  0
● Number of terminals with connection to P1 and  P2 bus  :  2

Description

General information
Product type designation : Type A0
HW functional status : From FS06
Supply voltage
Rated value (DC) :  24 V
External protection for power supply lines : Yes 24 V DC/10 A miniature circuit breaker with                                                                                           type B or C tripping characteristic

Current carrying capacity
For P1 and P2 bus, max. : 10 A
For process terminals, max. : 2 A

Connection method
     Terminals
● Terminal type : Push-in terminal
● Conductor cross-section, min. :  0.14 mm²; AWG 26
● Conductor cross-section, max. ;  2.5 mm²; AWG 14
● Number of process terminals to I/O module  :  16
● Number of terminals to AUX bus  :  0
● Number of add-on terminals  :  0
● Number of terminals with connection to P1 and  P2 bus  :  2
Dimensions
Width : 15 mm
Height : 117 mm
Depth : 35 mm
