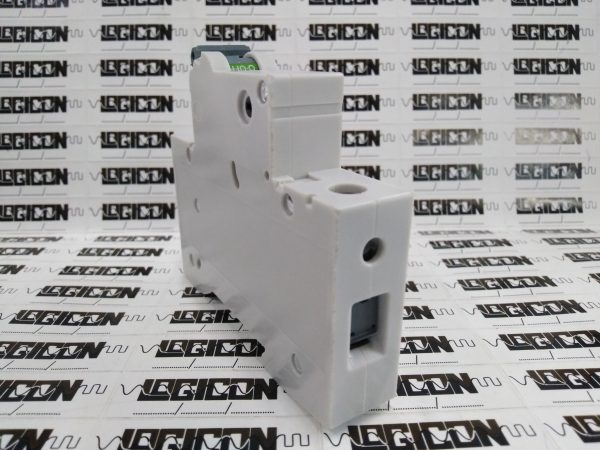

5SL6102-7CC

Miniature circuit breaker 230/400 V 6kA, 1-pole, C, 2A Circuit breaker 230/400 V 6kA, 1-pole, C, 2A

Description

Model
   Product brand name SENTRON
   Product designation Miniature circuit breaker
   Design of the product 5SL miniature circuit breakers


General technical data

     Number of poles 1
     Number of poles / Note 1 P
     Tripping characteristic class C
     Circuit-breaker / Design 5SL6CC
     Overvoltage category 3


Voltage

     Type of voltage AC
     Insulation voltage
         ● with single-phase operation / at AC / rated value  250 V
         ● with multi-phase operation / at AC / rated value 440 V


Supply voltage

     Supply voltage / at AC / rated value 400 V
     Supply voltage frequency / rated value 50 HZ


Protection class

      Protection class IP IP20, with connected conductors
      Energy limiting class 3


Switching capacity

     Switching capacity current
          ● acc. to EN 60898 / rated value  6kA


Dissipation

      Power loss [W] / for rated value of the current / at AC
/ in hot operating state / per pole
1.3 W


Electricity

     Tripping residual / rated value / derated

current / at 40 Cel

1.88611 A
     Current / at AC / rated value 2A


Main circuit

    Operating voltage
         ● minimum 24 V
         ● at DC / rated value / maximum 60 V
         ● with single-phase operation / at AC / maximum 250 V
         ● with multi-phase operation / at AC / maximum 440 V
   Suitability for operation Residential buildings/infrastructure


Product details

    Product feature / Touch protection Yes
    Product feature
        ● halogen-free Yes
        ● sealable Yes
        ● silicon-free Yes
    Product extension / can be installed / supplementary

devices

Yes


Product function

    Product function / neutral conductor switching No


Connections

    Connectable conductor cross-section / stranded
       ● minimum 0.75 mm²
       ● maximum 25 mm²
   Connectable conductor cross-section
       ● solid
          — minimum 0.75 mm²
          — maximum 25 mm²
       ● finely stranded / with core end processing
          — minimum 0.75 mm²
          — maximum 25 mm²
    Tightening torque / with screw-type terminals
        ● minimum 2.5 N·m
        ● maximum 3 N·m


Mechanical Design

     Height 90 mm
     Width 18 mm
     Depth 76 mm
     Mounting position any
     Installation depth 70 mm
     Number of width units 1


Environmental conditions

   Degree of pollution 2
   Influence of the surrounding temperature Periodically +55°C, max. 95% humidity
   Vibration resistance / acc. to IEC 60068-2-6 50 m/s² at 25 to 150 Hz
   Ambient temperature
        ● minimum -25 °C
        ● maximum 45 °C
        ● during storage / minimum -40 °C
        ● during storage / maximum 75 °C


Certificates

     Reference code
          ● acc. to DIN EN 61346-2 F
          ● acc. to DIN EN 81346-2 F
