3RV1011-1FA10 Circuit Breaker (EC-0147)

January 30, 2019 0

SIEMENS

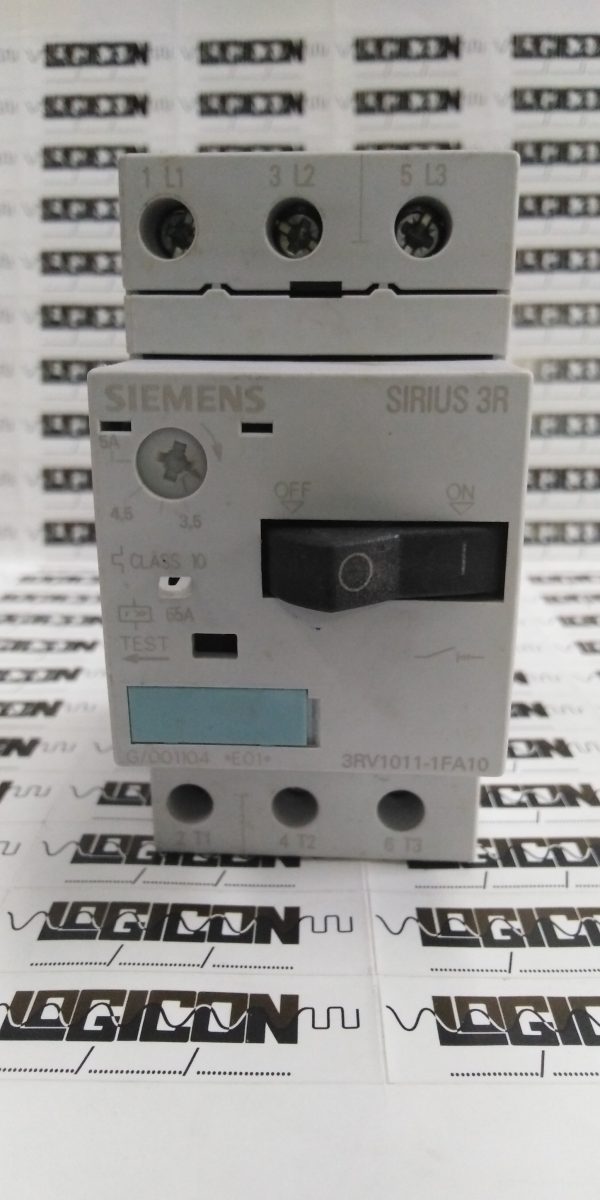

3RV1011-1FA10

Circuit breaker size S00 for motor protection, CLASS 10 A-release
3.5…5 A N release 65 A Screw terminal Standard switching capacity

Design of the product For motor protection
Product type designation :  3RV1

Design of the overload release  :   therma

Description

  • General technical data
    Size of the circuit-breaker :  S00
    Size of contactor can be combined company-specific  :  S00
    Product extension
    ● Auxiliary switch  :  Yes
    Power loss [W] total typical  :  6 W
    Insulation voltage with degree of pollution 3 rated value : 690 V
    Surge voltage resistance rated value : 6 kV
    Maximum permissible voltage for safe isolation
    ● in networks with grounded star point between main and auxiliary circuit  :  400 V
    ● in networks with grounded star point between main and auxiliary circuit : 400 V
    Protection class IP
    ● on the front  :  IP20
    ● of the terminal  : IP00
    Mechanical service life (switching cycles)
    ● of the main contacts typical   :  100 000
    ● of auxiliary contacts typical   :  100 000
    Electrical endurance (switching cycles)
    ● typical   :   100 000
    Type of protection  :  Increased safety
    Certificate of suitability ATEX   :  Yes
    Protection against electrical shock  :   finger-safe
    Reference code acc. to DIN EN 81346-2   :  Q
