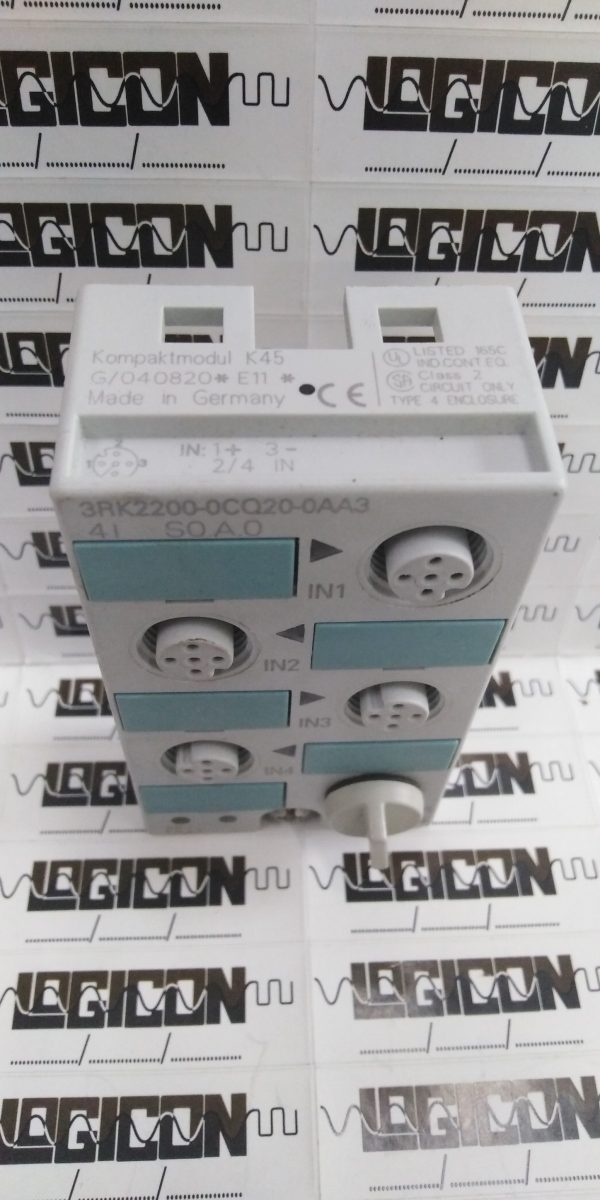

3RK2200-0CQ20-0AA3 COMPACT MODULE (EC-0146)

January 30, 2019 0

SIEMENS

COMPACT MODULE

3RK2200-0CQ20-0AA3

(EC-0146)

AS-i compact module K45 digital A/B slave, 4 DI, IP67 4 x input,
maximum 200 mA 4 x M12 socket Mounting plate 3RK1901-2EA00
or 3RK1901-2DA00 is to be ordered separately



Description

  • General technical data
    -Design of the product  :  digital I/O modules for operation in the field, IP67 – K45
    -Type  :   4 inputs
    -Design of the slave type  :  A/B slave
    -I/O configuration  : 0
    -ID/ID2 code   :  A/0
    -Number I/O sockets   :   4
    -Type of electrical connection of the inputs and outputs  :  M12 screw-type terminals
    -AS interface total current input max   :  270 mA
    -Operating voltage according to AS-Interface spezification  :  26.5 … 31.6 V
    -Ground terminal  :  Using PIN5 on the M12 sockets. Outgoing via flat tab sleeve (2.8x 0.8 mm.     form A)
    -Addressing  :  front addressing socket
    -AS interface Connection Polarity reversal protection :   built-in
    -Delivery note  :   the modules are delivered without mounting plate

Input voltage  :  20 … 30 V

  • Inputs
    Number of digital inputs   :  4
    Type of connection   :  2- and 3-wire technology
    Input circuit :  PNP transistor
    Type of voltage of the input voltages  :  DC
    Inputs switching level High min  :  10 V
    Input current at digital input
    ● for signal <1> minimum  : 6 mA
    ● with signal <0> maximum  :  1.5 mA
    Inputs sensor supply using AS-Interface  : short-circuit and overload resistant
    Inputs socket assignment
    ● PIN 1  :  sensor supply L+
    ● PIN 2  :  data input
    ● PIN 3  :  sensor supply L-
    ● PIN 4  :  data input
    ● PIN 5  :  ground terminal
    Design of the pin assignment of the inputs  :  standard assignement
    Outputs
    Number of digital outputs  : 0
    Status display
    ● display of I/Os  :  yellow LED
    ● display of Uaux : not required
    ● display of AS-Interface/diagnostics :   green/red dual LED
    Assignment of data bits
    ● socket  :  PIN 4/2 = IN1 (D0)
    ● socket 2  : PIN 4/2 = IN2 (D1)
    ● socket 3  :  PIN 4/2 = IN3 (D2)
    ● socket 4  :  PIN 4/2 = IN4 (D3)
